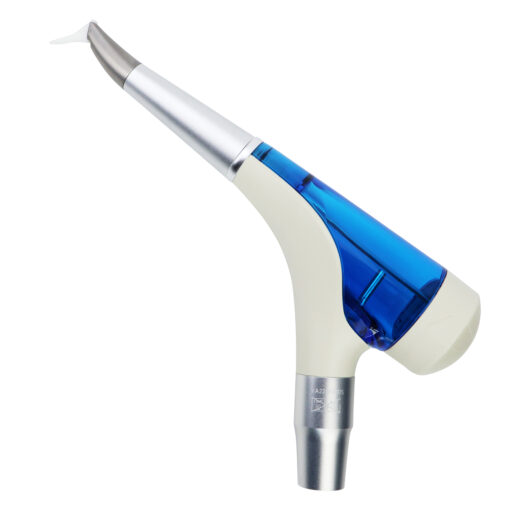

Powder Jet International 4 holes & KaVo Coupling Options
The Powder Jet Handpiece is a specialized dental tool designed for efficient and effective dental cleaning and periodontal treatment. It is equipped with international 4 standard holes and a KaVo Coupling-compatible connection, ensuring compatibility with a wide range of dental units.
Application in Dentistry
The Powder Jet Handpiece is available in two options: Supragingival and Subgingival. Each is designed with a unique powder jet tip to cater to different dental needs:
- Supragingival Handpiece: Ideal for above-the-gum cleaning, removing plaque and stains from the tooth surface.
- Subgingival Handpiece: Specifically designed for below-the-gum cleaning, targeting periodontal pockets to remove deep-seated plaque and bacteria.
Product Features
- Versatile Functionality: Capable of performing supragingival and periodontal sandblasting, providing all-round plaque removal and periodontal treatment.
- Anti-Suction Design: Prevents powder and moisture from being sucked back, reducing the risk of cross-infection and contamination of the dental unit cable.
- Air Flow Adjustment: Allows for customizable air flow to meet various clinical requirements.
- Ergonomic Design: Compact and lightweight, designed for comfort and ease of use, reducing fatigue during prolonged use.
- 360-Degree Rotation: The handle can rotate 360 degrees for optimal maneuverability.
- High-Temperature Sterilization: The handle can be sterilized at high temperatures up to 134°C (main body cannot be autoclaved).
- Subgingival Compatibility: The subgingival handle can be connected for subgingival sandblasting.
Parameters
Parameter | Specification |
---|---|
Water Input Pressure | 0.7 bar ~ 2.2 bar (70 ~ 220 kPa) |
Air Input Pressure | 3.5 bar ~ 4.5 bar (350 ~ 450 kPa) |
Water Flow | 50 ~ 80 ml/min |
Connection | 4-Hole / KaVo Coupling |
Color | Blue / Red |
Material | Aluminium & Plastic |
Using Powder | Sodium Bicarbonate |
Net Weight | 180 g |
Gross Weight | 655 g |
Package Size | 260 mm × 190 mm × 78 mm |
Manufacturing Date | See the packing |
Lifetime | 5 years |
Operating Conditions | Temperature: 10°C ~ 40°C |
Relative Humidity: 30% ~ 75% | |
Air Pressure: 50 kPa ~ 106 kPa | |
Storage and Transport Conditions | Temperature: -10°C ~ 40°C |
Relative Humidity: 10% ~ 95% | |
Air Pressure: 50 kPa ~ 106 kPa |
Packing List
- Main Body: 1
- Cleaning Needle: 3
- Cleaning Spray Nozzle: 1
- Cleaning Brush: 1
- O-Ring: 5
