Apex locator With Handpiece For Root Canal Therapy

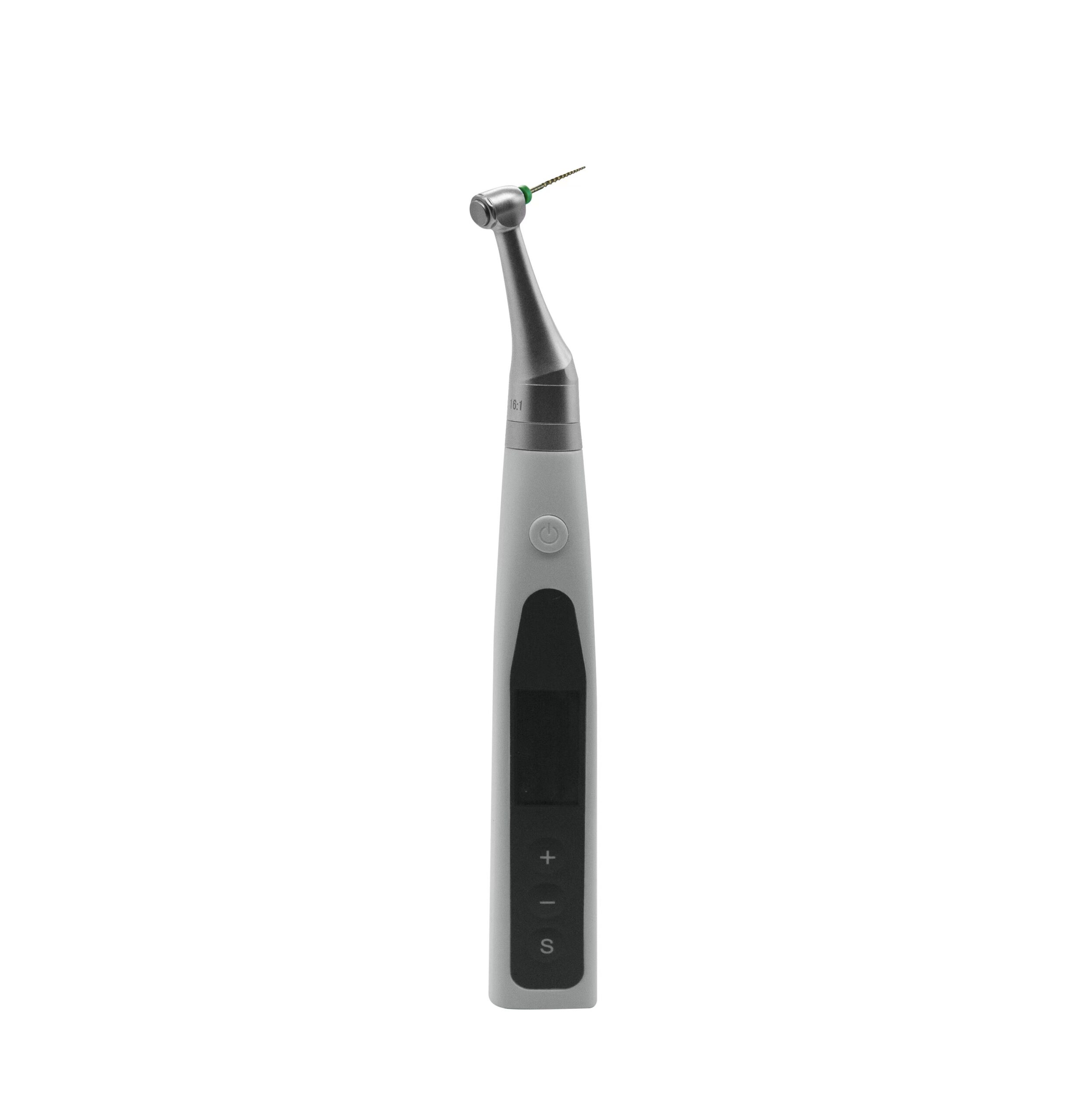

Surgical 16:1 Contra-angle Handpiece With Apex Locator For Effective Root Canal Therapy

Apex locator measures the length of the canal and finds the apical end with the electric lead device.

The LED provides the additional benefit of a clear and visible environment in RCT.

The reciprocating action offers an easy and reliable apex location.

The Electronic apex locator can be with or without a cord, depending upon the user application.

The apex locator with handpiece offers versatile functionality, featuring reciprocating motion, adaptive torque control for forward and reverse rotation, providing precise and efficient root canal procedures.

The apex locator and handpiece with built-in dual reciprocating motion programming – forward 120° and reverse 45°, as well as reverse 120° and forward 45° – enables precise and efficient root canal procedures when used with professional reciprocating files.

Material:The Electric Endodontic Apex locator is made of high-quality plastic.

Key parameter:

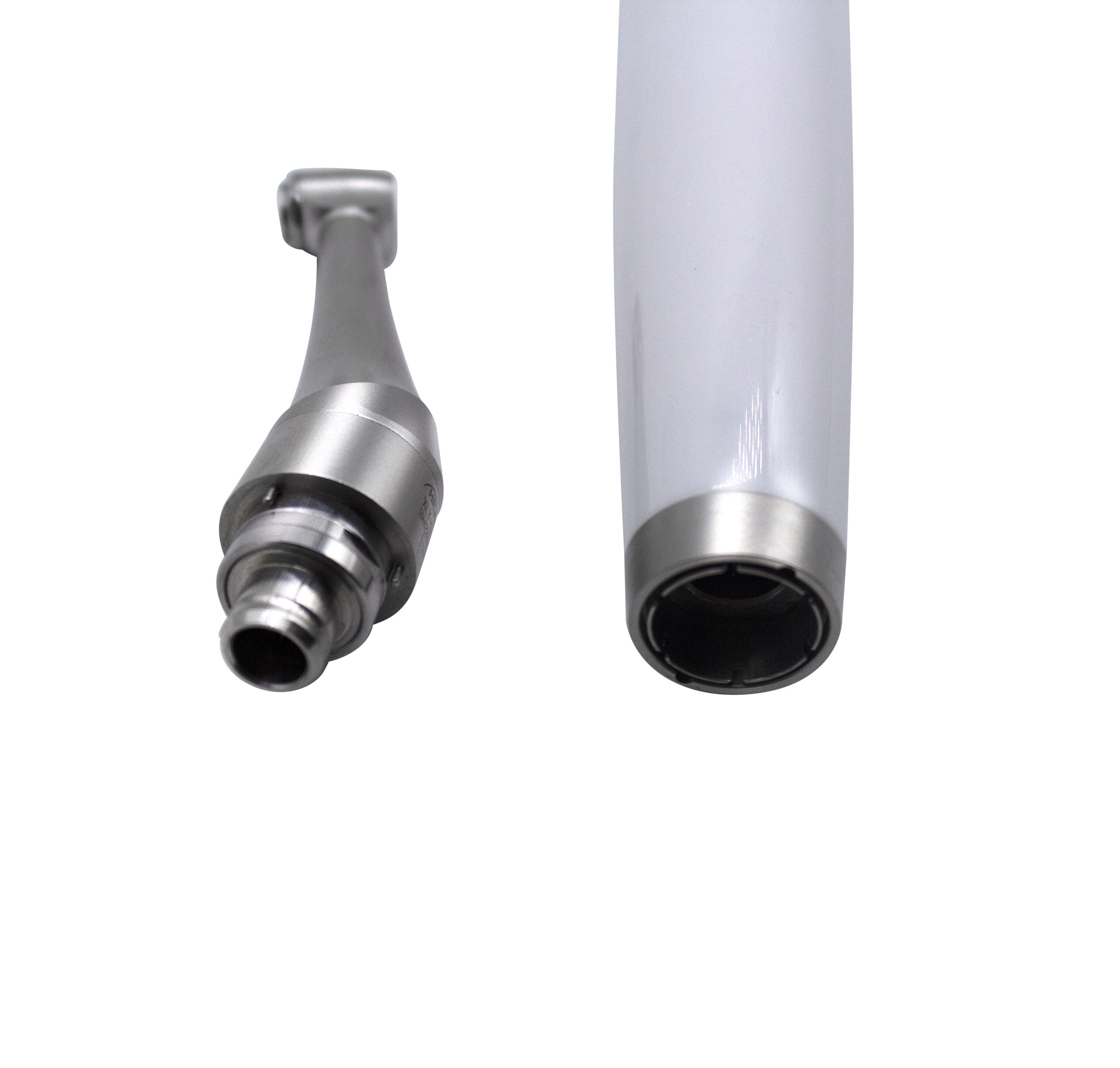

• Handpiece: 16:1 Mini contra angle
• Torque Range: 0.3-4.0N.cm
• Speed Range: 140~550rpm
• Lithium Battery: 3.7Vdc, 800mAh
• 9 customs working modes: M0-M8
• Root canal length measuring mode:M9

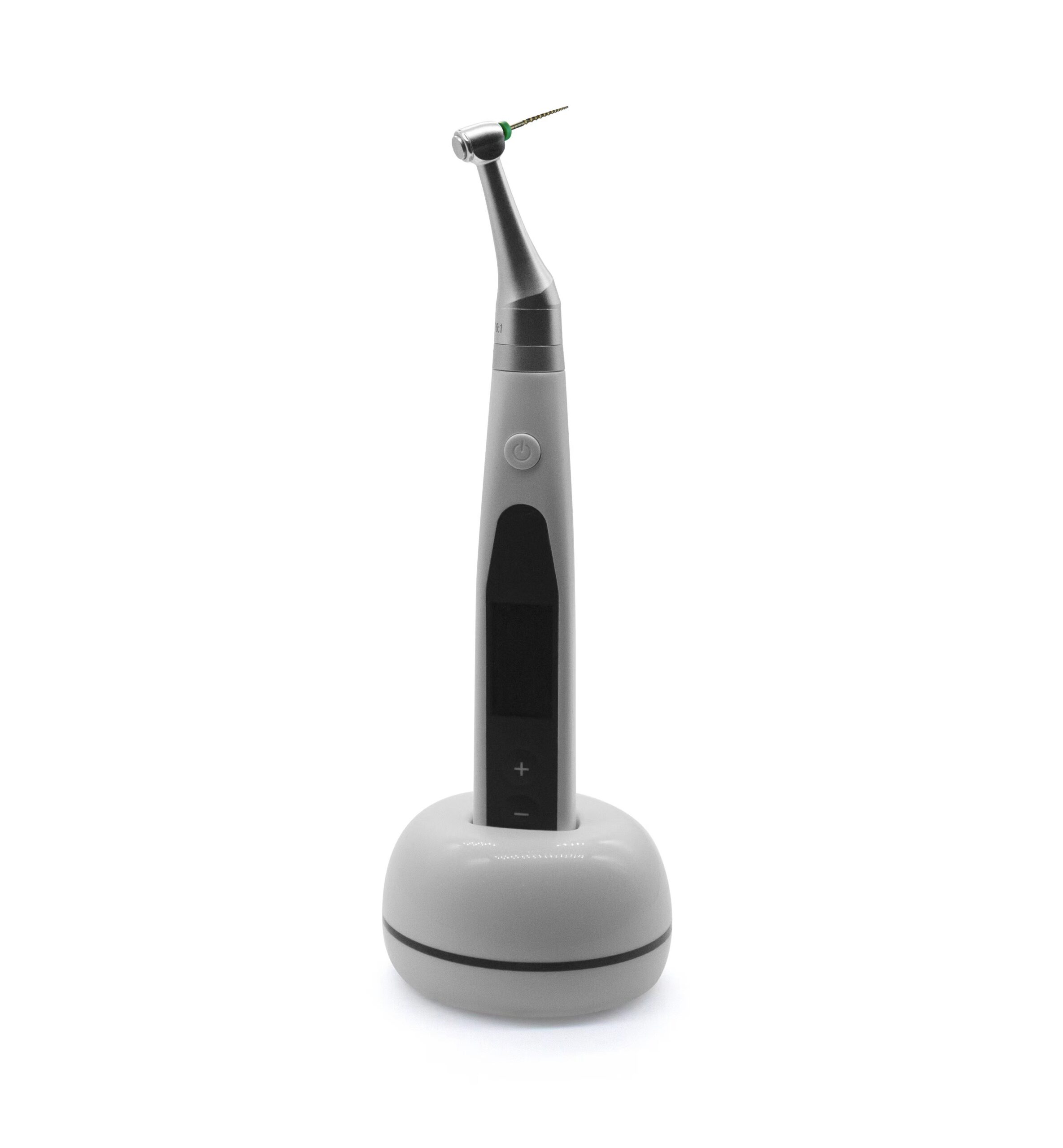

• Endo motor integrates with apex locating

Features of Endo Motor Integrating with Apex locating:

1. Real-time apex distance measurements shown on motor screen
2. Alerts when file tip nears anatomical apex
3. Auto-reverse and auto-stop functions triggered at preset canal lengths
4. Enlarged canal view on screen when nearing apex
5. Precise control of file advancement to avoid overinstrumentation

Operation on two modes

1-Root canal measuring model:

Motor Settings:

• Switch the endo motor to M9 mode for apex locating.
• Connect the motor handle to the USB socket on the unit.

File Preparation

• Select appropriate ISO hand files for the canal size.
• Ensure files are connected to the file clip for length measurement.

Lip Clip

• Attach the lip hook/clip from the measuring wire to the patient’s mouth.
• This will complete the electrical circuit needed for measuring.

File Insertion

• Insert file into the canal, ensuring it is loose and moves freely.
• Advance file apically while observing the canal length indicator on screen.

2-Root canal expanding procedures integrates with apex locating model:

Preparation:

• Connect motor handle to USB port on unit
• Attach lip clip to patient’s mouth to complete circuit
• Select appropriate ISO rotary or reciprocating files for canal size

Length Measurement:

• Insert file loosely into canal so it moves freely
• Advance file apically while observing length indicator on screen
• Note flashing arrow and beep when nearing apex
• File will auto-reverse on reaching preset working length

Cleaning and Shaping:

• Observe enlarged canal view on screen when nearing apex
• Auto-reverse and auto-stop functions will activate at preset lengths

6 smart continous rotary/reciprocating files motion modes to meet different needs:

The apex locator integrated into the 16:1 contra-angle endo handpiece enables 360° continuous rotation, Adaptive Torque Control (ATC), and reciprocation motion for endodontic files. This integration provides several key benefits:

The continuous rotation and ATC prevent file separation and breakage by stopping the file when unwanted stress is detected. The reciprocation motion further enhances file safety and efficiency in reaching the canal terminus.

The integrated apex locator gives precise real-time measurements throughout cleaning and shaping. This allows the dentist to know exactly when the apex is reached, preventing over-instrumentation. The dentist can complete precise canal preparation and apical terminus identification with a single handpiece.

Application:

Digital apex locator measures the length of the canal.

It helps to find the apex of the root canal that help in obturation and filing of the canal.
