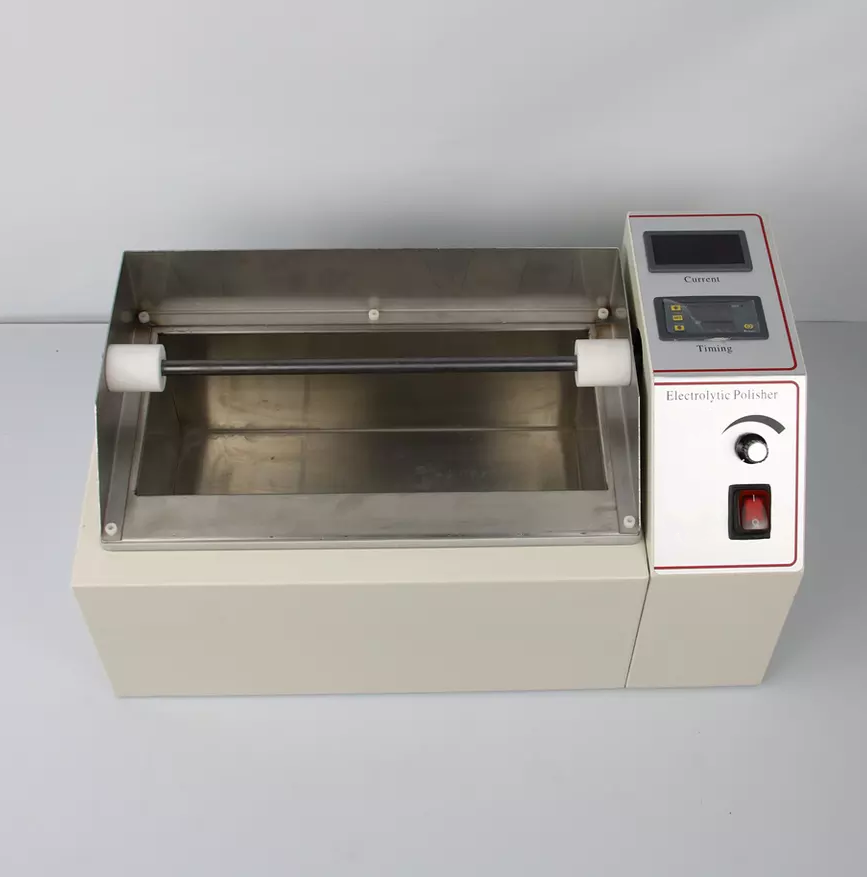

Advanced electrolytic polishing unit with adjustable current and timing set
Designed to remove impurities from dental castings such as partial frames, crowns, bridges, and metal bases, our unit utilizes advanced electrochemistry analysis to provide fast and complete cleaning, resulting in enhanced surface smoothness and brightness.
Equipped with a sizeable electrolytic space cell, our unit has the capacity to process up to 10 metal workpieces simultaneously, allowing for an efficient and streamlined workflow.
The workpieces are easily electrolyzed by hanging them on the handle and moving them left and right repeatedly. This unit is particularly well-suited for the cobalt chrome framework.
With a CPU on the circuit board, our unit can set an accurate electrolytic power and timer with a digital display, ensuring precise and consistent results every time. Technicians can customize the electrolytic programming with current (0-20A) and timing (0-12min) to suit their needs.
- Power supply: 220V/50Hz, 110V/60Hz
- Time range: 0-12min
- Power consumption: 400W
- Electrolytic solution capacity: 2500ml
- Dc output current: 0-20A adjustable
- Dc output voltage: 0-20V
- Size: 570*390*480mm
- Weight: 30Kg
Benefits in laboratories usage:
- Fast and complete cleaning: The unit can remove impurities from dental castings quickly and completely, saving time and effort for dental technicians.
- Enhanced surface smoothness and brightness: The unit’s electrochemistry analysis can improve the surface smoothness and brightness of castings, resulting in a better finish for dental prosthetics.
- Large electrolytic space cell: The unit’s large electrolytic space cell enables the processing of up to 10 metal workpieces at once, making it an efficient and streamlined solution for dental laboratories.
- Customizable programming: Technicians can customize the electrolytic programming with current and timing to suit their needs.
- Consistent and precise results: The unit’s digital circuit board ensures that the electrolytic power remains consistent, resulting in precise and reliable cleaning results every time.
