Intuitive Touch Control Implant Motor and Handpiece for Efficient Surgery
100% Genuine products
Inclusive of all taxes
Free shipping
(Except Dental Lab Equipments and Zirconia Blocks Products)
(Except Dental Lab Equipments and Zirconia Blocks Products)
Dispatch time : 1 to 3 Working Days
Featuring a high-definition touch screen, AI calibration, and a powerful Swiss LED motor, this dental implant motor and handpiece system empowers dentists with effortless control and exceptional precision.
Powerful & Reliable: Swiss LED motor tackles any procedure with wide speed range (100-40,000 rpm) and high torque (70 N.cm).
Hands-Free Control: Multi-functional foot pedal for water flow, program, direction & speed – maximize efficiency & focus on surgery.
Deal of the Day
Original price was: $3,000.00.$1,959.00Current price is: $1,959.00.
Want to buy even more quantity?
Wholesale Price Inquiry
Wholesale Price Inquiry
Description
AL Implant Touch: Intuitive Implant Motor System
The AL Implant Touch is a dental implant system designed for ease of use and accuracy during implant placement procedures. A high-definition touch screen allows for intuitive control of the motor, while AI intelligent calibration ensures precision throughout the surgery. For safe and successful implant placement, the motor provides accurate torque control. A real-time speed display keeps the dentist informed during the procedure.
The powerful Swiss LED motor boasts a wide speed range (100-40,000 rpm) for versatility and a high maximum torque (70 N.cm) to tackle demanding procedures.
Hands-free control is achieved through a multi-functional foot pedal, which allows for water flow control, program selection, rotation direction, and speed adjustment. A silent peristaltic pump with steady water flow ensures aseptic operation and easy hose connection and disconnection.
The motor set, which comes equipped with a handpiece featuring a 20:1 reduction ratio, benefits from the inclusion of fiber optic illumination and an external water supply system for enhanced performance and precision.
Design Features
1, Implant motor:
- High-definition touch screen:The implant motor is controlled by a high-definition touch screen, which allows for easy and intuitive operation.
- AI intelligent calibration:The implant motor features AI intelligent calibration, which helps to ensure the accuracy and safety of the procedure.
- Accurate torque control:The implant motor provides accurate torque control, which is essential for safe and successful implant placement.
- Real-time speed display:The implant motor has a real-time speed display, which allows the dentist to monitor the speed of the motor during surgery.
2, Multi-functional Foot Pedal:
- 5-rotor stepper motor precisely controls the rotation angle.
- Program switching (P1-P5):This allows for the selection of different pre-programmed settings.
- Cooling water switch (On/Off):Allows you to turn the cooling water flow on or off.
- Switch motor rotation direction (FWD/REV)..
- Easily installation, running silently, offering steady water flow.
3, Peristaltic Pump:
- The multi-functional foot pedal can easily control and switch the water flow, program, rotation direction and intelligently control the speed.
- Truly achieve aseptic operation, thoroughly liberate hands.
- Quickly change hoses with a single twist and close lightly without gaps.

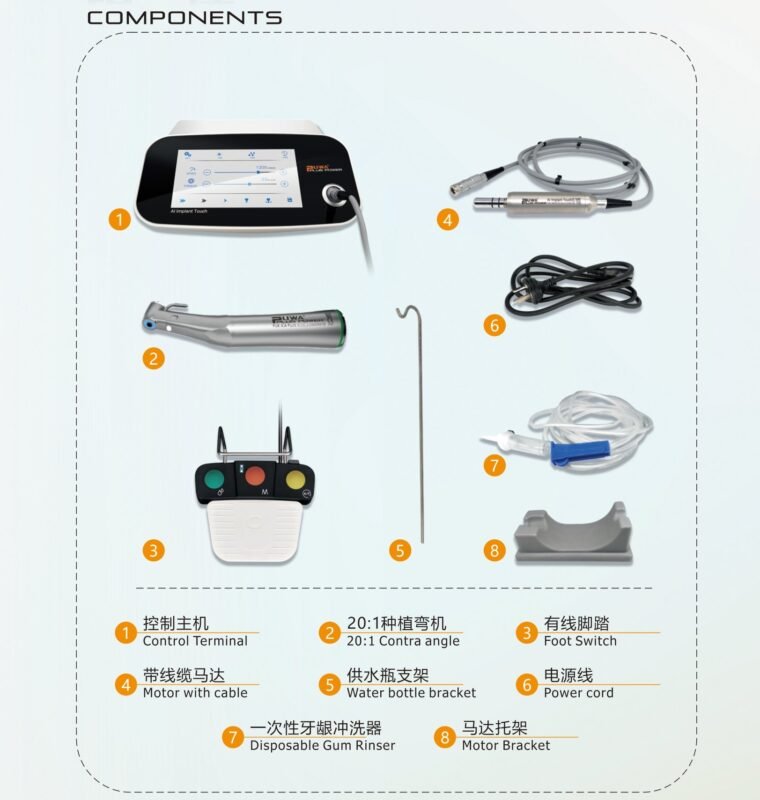

Accessories list
| Component | Description |
| Control Terminal | The main unit that controls the speed and torque of the motor. |
| 20:1 Contra Angle | An attachment that connects the handpiece to the control terminal and provides a 20:1 gear ratio. |
| Motor with Cable | The motor that provides power to the handpiece. |
| Foot Switch | Allows the dentist to control the motor on and off with their foot. |
| Power Cord | The cord that connects the control terminal to the power outlet. |
| Disposable Gum Rinser | A disposable device used to irrigate the surgical site. |
| Water Bottle Bracket | A bracket that holds the water bottle for the irrigation system. |
| Motor Bracket | The bracket that holds the motor in place. |
Motor parameter
| Parameter | Value |
| Model | AL IMPLANT TOUCH |
| Voltage | AC 100-230V |
| Voltage Fluctuation | ±10 |
| Frequency | 50 Hz |
| Max. Power Consumption | 340VA |
| Rated Voltage Torque Range | 5-70 N.cm |
| Rated Voltage Speed Range | 100-40,000 rpm |
| Cooling Water Flow | 10-100 ml/min |
| Operation Mode | S3(3/10 MINY) |
Original factory setting, user can define the custom data
| Parameter | Factory Settings (P1-P3) | User Manual Settings (P4-P5) |
| Speed Ratio | 1:1, 20:1, 20:1 | 20:1, 20:1, 20:1, 20:1 |
| Rotation Rate (rpm) | 35,000, 1,200, 800 | 30, 30, 30, 30 |
| Speed Range (rpm) | 100-40,000, 15-2,000, 15-2,000 | 1200-1,500, 1,000-1,200, 900-1,000 |
| Direction | Forward, Forward, Forward | Forward, Reverse, Forward, Reverse |
| Cooling Water | On, On, On | Off, Off, Off, Off |
| Torque (cmN) | 100%, 100%, 100% | 45, 45, 45, 45 |
| Torque Range (N.cm) | – | 5~70, 5~70, 5~70, 5~70 |
Tutorial Video
Additional information
| Weight | 0.5 kg |
|---|---|
| Dimensions | 30 × 30 × 20 cm |

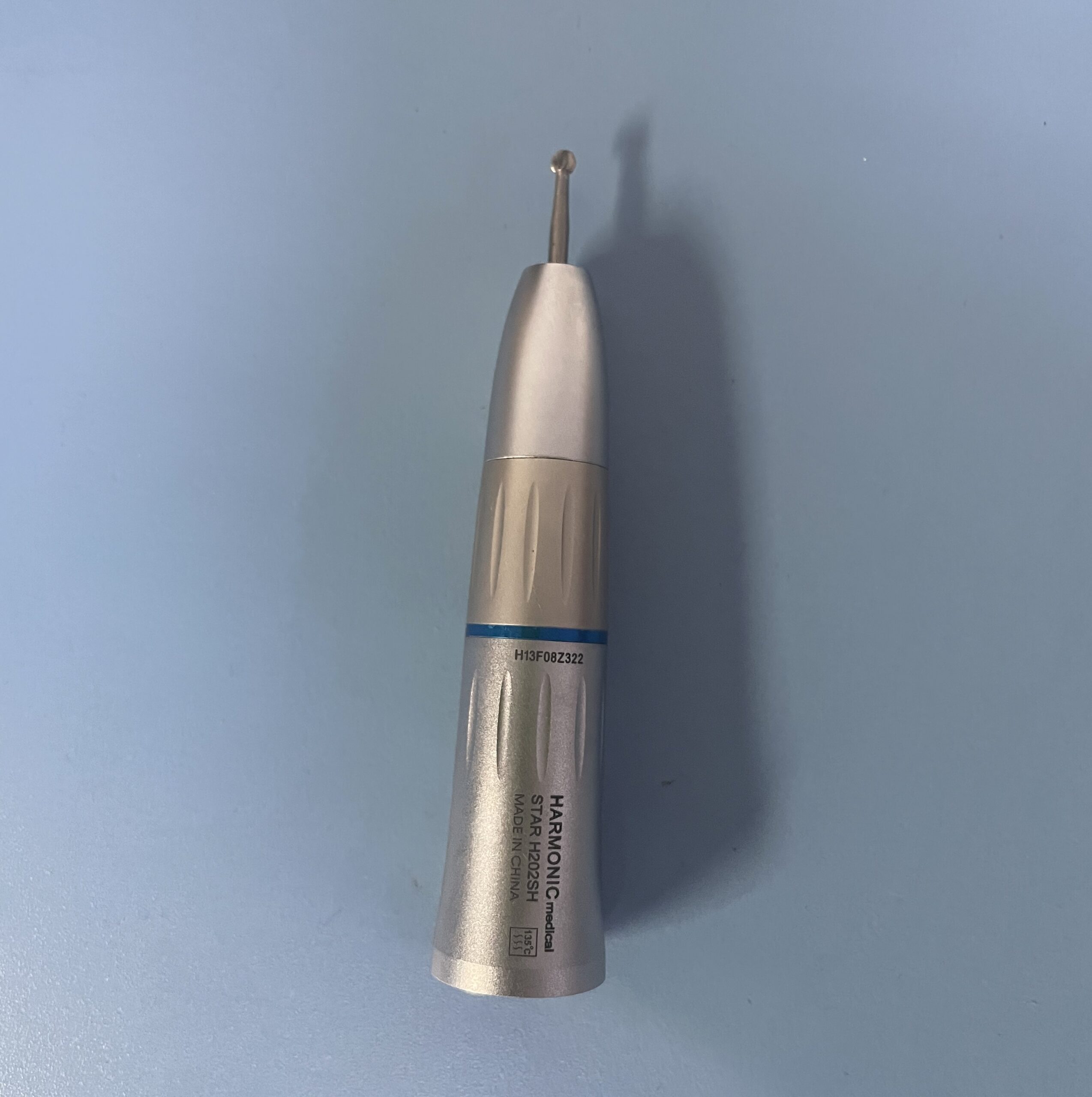

| Options | Straight Handpiece fiber optic, Straight Handpiece Non-light, Complete micromotor set, motor, 1:5 handpiece, 45° angled handpiece, 1:1 handpiece |
