Dental Tray & Implant Guide Plates Curing Light Polymerization Unit

Dental Material Polymerization Unit

The dental curing unit is designed for polymerizing dental materials such as individual trays and guide plates for implants. It provides strong and stable light intensity to ensure optimal curing results.

Product Features

• Compact size for easy operation and storage
• Digital display for easy time adjustment from 6 seconds to 99 minutes
• Memorize function to retain preset curing time
• Safety switch to turn off light when door opens
• Long-life 27W lamp bulb for over 5,000 hours use
• Stable light intensity output for optimal curing

Applications in Dental Laboratory

• Polymerization of individual tray materials on stone casts
• Curing of guide plates for dental implants
• Curing of other dental materials requiring light polymerization

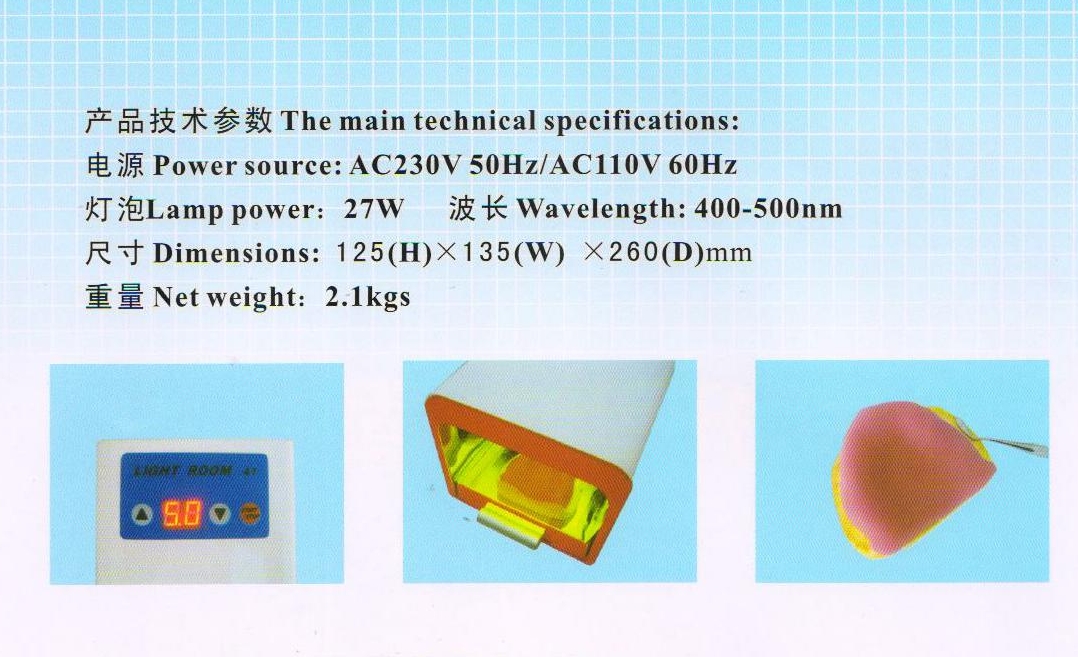

Technical Specifications

• Power: AC 230V/110V, 50Hz/60Hz
• Lamp: 27W
• Power consumption: ≤30W
• Unit size: 280 x 135 x 125 mm
• Weight: 2.1 kg
• Timer range: 0.1 min (6 sec) – 99 min
• Lamp life: ≥5,000 hours
• Fuse: 250V 1A, 125V 2A
