Mandible Denture Positioning Instrument For Edentulous

Articulator compatible denture positioning instrument tool for edentulous.

For edentulous/complete denture occlusal alignment relashionship.

Compatible with Artex-mounting system.

Free shipping.

Deal of the Day


SKU: N/A Categories: ,

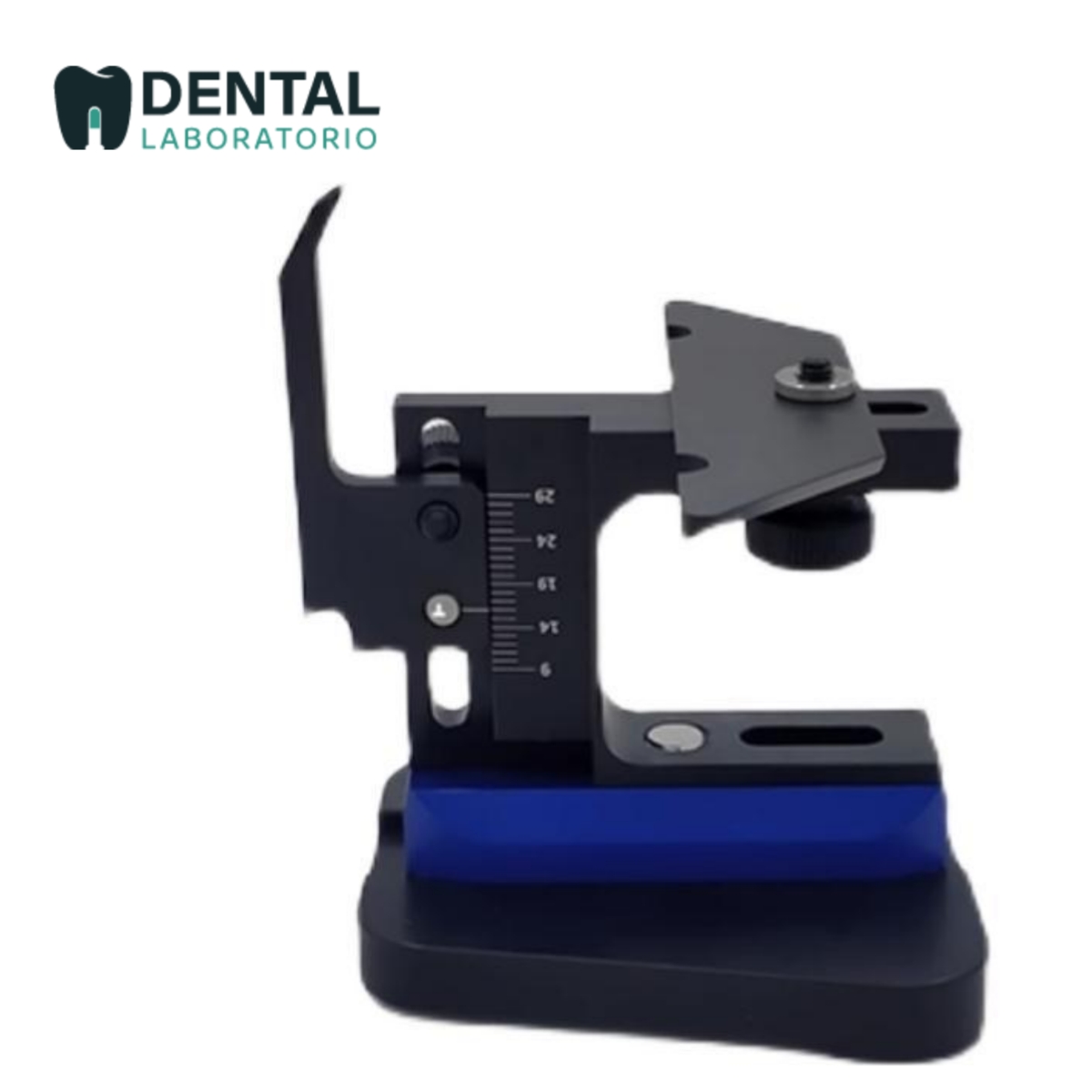

Complete denture positioning instrument, Artex articulator compatible.

The tool sets the mandible’s position and occlusion in relation to Artex articulators. It uses elastic bands to hold the maxilla edentulous jaw model in place, and the magnetic tool to secure it to the articulator on maxilla magnetic base.


  1. Securely attach the edentulous jaw model to the positioning tools with elastic bands.
  2. Magnetically attach the edentulous jaw model to the maxillary arch on articulator to ensure correct positioning.
  3. Adjust the occlusal relationship of the mandible to ensure proper alignment.
  4. Employ the magnetic tool to help in correctly placing the edentulous jaw model on Artex articulators.

Articulator options

At Dental Laboratorio, we provide a selection of articulator options that are compatible with the Artex mounting system. Choices include average value, semi-adjustable, and fully adjustable articulator models. This allows the flexibility to purchase the magnetic denture positioning instrument alongside any of our articulators.

Dental labs can also buy the denture positioning tool individually as needed. Having the right articulator and positioning instrument improves denture fabrication and optimizes the occlusion. Our products give dental technicians the high-quality equipment required for excellent denture outcomes.

1. Average value articulator

dental articulator artex bn system model

Sagittal Condylar Inclination Fixed at +35°
Curvature Radius 19 mm
Bennett Angle Fixed at +15°
Incisal Guidance Adjustable from -5 mm to +10 mm
Incisal Guidance Table

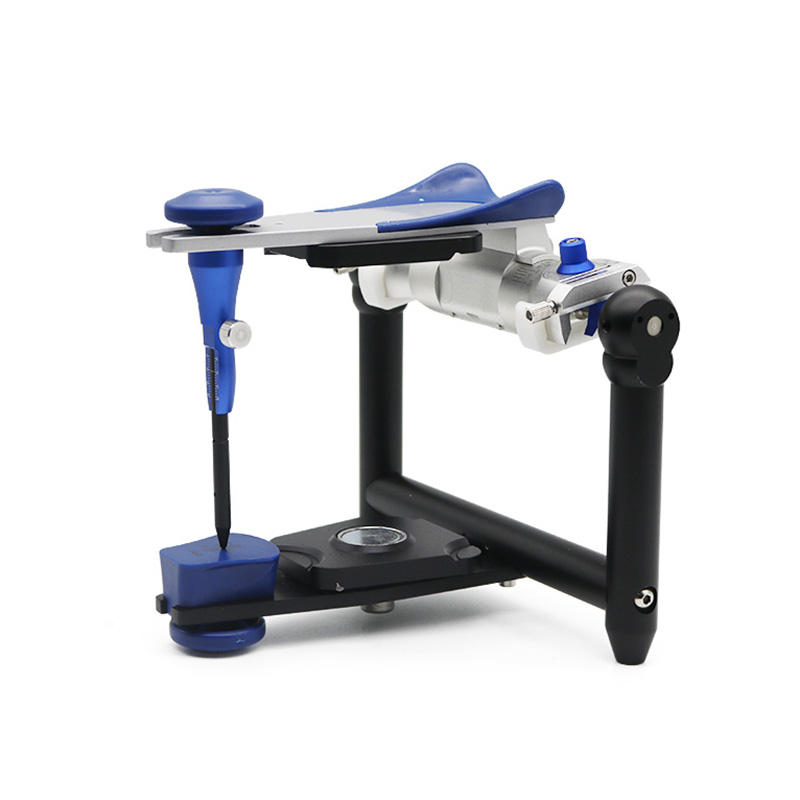

2. Semi-adjustable articulator

Magnetic Articulator With Artex mounting system

features of magentic artex mounting articulator semi-adjustable

Condylar Guidance Inclination -15° to +60°
Curvature Radius 19 mm
Bennett Movement 0° to +30°
Retrusive Movement 0 to 2 mm
Incisal Guidance Pin -5 mm to +10 mm
Incisal Guidance Table
Mounting Base Ladder-shaped design
Compatibility Artex Amann Girrbach System

3. Fully adjustable articulator

Parameter Adjustment Range
Sagittal Condylar Inclination -20° to +60°
Curvature Radius of Condylar Inclination 19 mm
Bennett Angle -5° to +30°
Protrusion 0 to 6 mm
Retrusion 0 to 2 mm
Distraction 0 to 3 mm
Immediate Sideshift (ISS) 0 to 1.5 mm
Incisal Guidance -5 mm to +10 mm
Incisal Guidance Table
Additional information

Positioning tools, average articulator, semi-adjustable articulator, fully adjustable articulator

denture positioning instrument for edentulous patients
Mandible Denture Positioning Instrument For Edentulous
$169.00$829.00 Select options
